Macrolux Solid

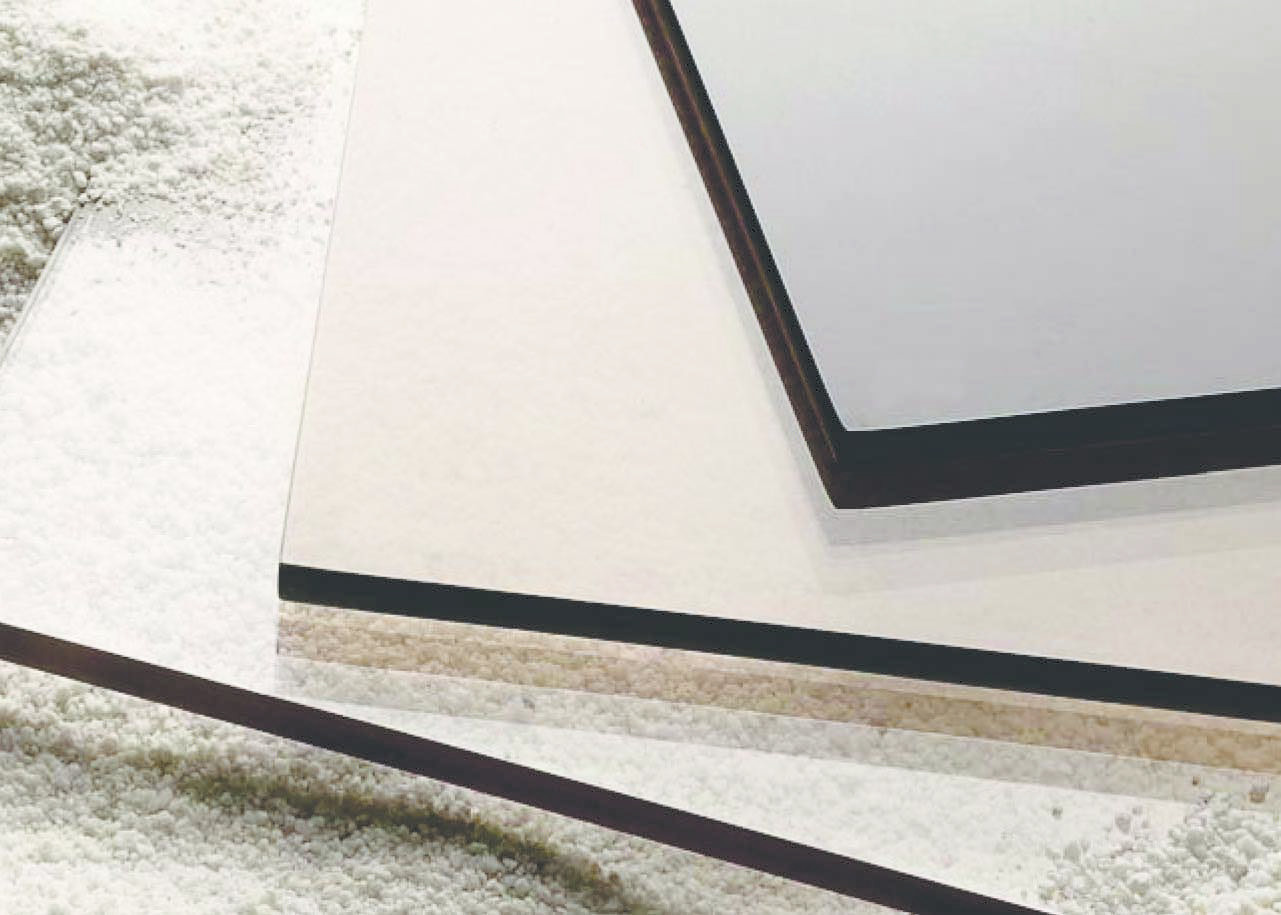

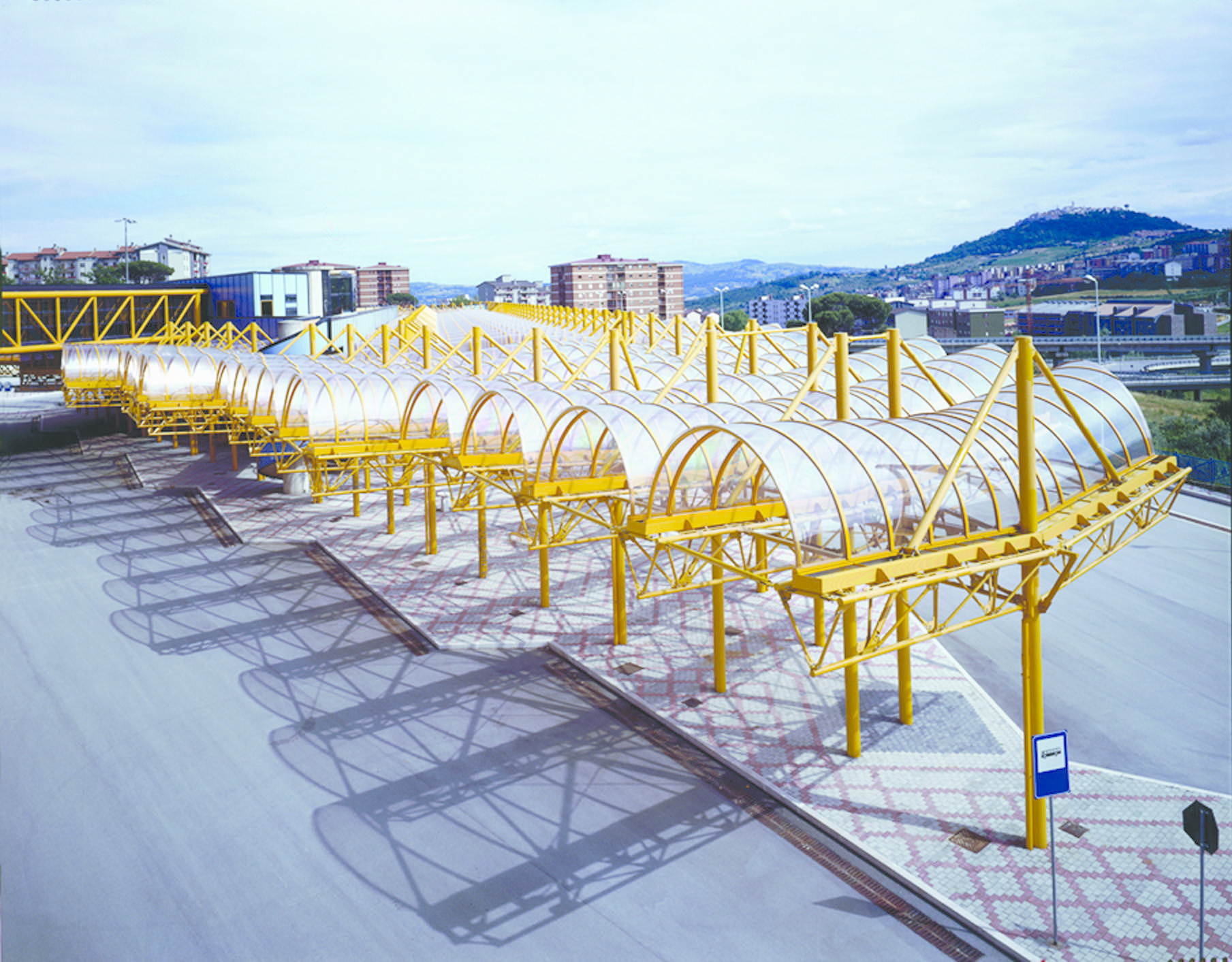

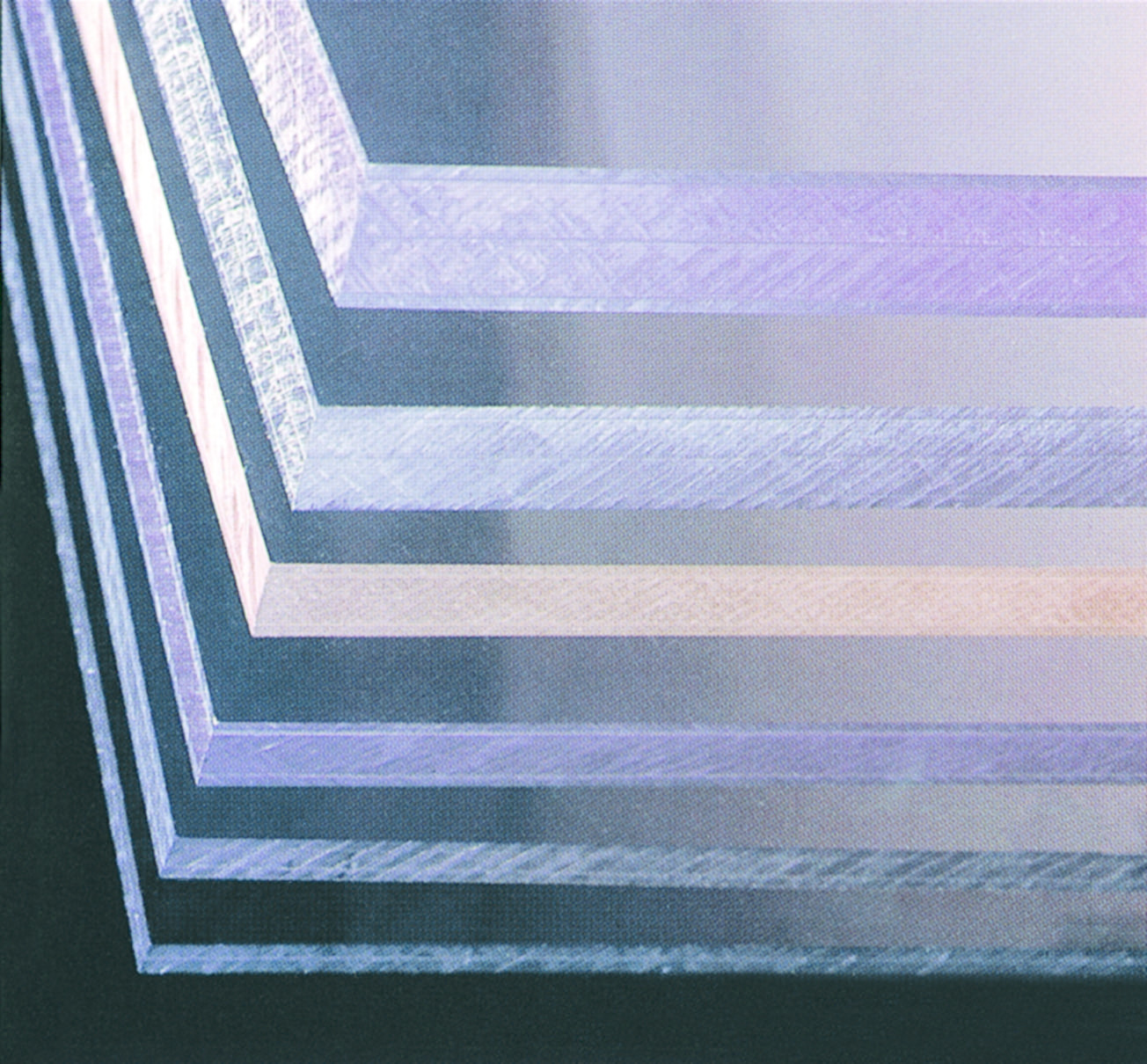

Macrolux® Solid compact sheets are the ideal solution in fields of application where impact resistance and excellent light transmission are primary requirements: glazing, parapets, canopies, skylights, curved roofing systems, signage in general, neon signs, road signs, noise barriers. Macrolux® Solid sheets come in thicknesses ranging from 2mm to 12.7mm, in a choice of translucent and opaque colours.

Benefits

  • Lightweight
  • Excellent impact resistance
  • Excellent light transmission
  • Good fire performance
  • Guaranteed certified quality
  • UV protection
  • Extremely versatile to use
Flammability
ASTM D 635 C1 ; C2
ASTM D 1929 Self Ignition 1022 °F
Flash Ignition 932 °F
UL 94 V-1
NO UV

NO UV protection

Sheets are monolithic polycarbonate sheets with no UV protection. They can be used in any application that is not going to be exposed to direct sunlight, such as unbreakable containers, ballot boxes, guards for industrial machinery, internal partitions.

  • Internal partitions
  • Internal protections
  • Machinery guards
  • Industry
1UV

UV protection

Sheets are monolithic polycarbonate sheets with UV protection on only one side. Ideal for applications where just one side of the sheet will be directly exposed to the harmful effects of solar UV rays.

  • Skylights
  • Glazing
  • Opening frames
  • External partitions
  • Noise barriers
  • Safety glazing
  • Parapets
  • Canopies
2UV

UV protection on both sides

Sheets are monolithic polycarbonate sheets with dual UV protection. They are used in all applications where the sheet is exposed to the harmful effects of direct sunlight. The co-extruded protection on both surfaces means cutting is optimized, the possibility of incorrect assembly is reduced to a minimum and lasting stability is ensured when it comes to both optical and mechanical properties. This product’s features make it unique in delivering superior performance in terms of: transparency, impact resistance, mechanical strength, machinability and adaptability to a wide range of solutions, in addition to retaining exceptional chemical and physical stability. Ideal for applications in which both of the sheet’s sides will be exposed to the sunlight.

  • Skylights
  • Glazing
  • Opening frames
  • External partitions
  • Noise barriers
  • Safety glazing
  • Parapets
  • Canopies
Download schema for use of accessories
ACCESSORY
[SCHEME]
DIM
(mm)
TECHNICAL DESIGN
Upper aluminium joining profile (Cod. M9S7)
[ B ]
6000
Lower aluminium joining profile (Cod. M9S8)
[ B ]
6000
Aluminium upper head profile (Cod. M9S9)
[ A ]
6000
Aluminium lower head profile (Cod. M9T0)
[ A ]
6000
Aluminium cap profile (Cod. M9T1)
[ A ] [ B ]
6000
1 mm EPDM gasket (Cod. M9S3)
[ A ] [ B ]
---
3 mm EPDM gasket (Cod. M9S5)
[ A ] [ B ]
---
EPDM thermal-break seal (Cod. M9T5)
[ A ] [ B ]
---
Rubber seal (Cod. M9Z9)
[ A ] [ B ]
---
Screws (Cod. M9T3; M9T4)
[ A ] [ B ]
4.2 x 13; 4.2 x 19
Aluminium strengthening profile (Cod. M9T2)
6000
Aluminium fixed sill profile (Cod. M9R6)
[ C ]
6500
Aluminium revolving sill profile (Cod. M9R7)
[ C ]
6500
10 mm aluminium panel stop (Cod. M9R4)
[ C ]
5700
EPDM wedge gasket (Cod. M926)
[ C ]
---
ACCESSORY
[SCHEME]
DIM
(mm)
TECHNICAL DESIGN
Upper aluminium joining profile (Cod. M9S7)
[ B ]
600
Lower aluminium joining profile (Cod. M9S8)
[ B ]
6000
Aluminium upper head profile (Cod. M9S9)
[ A ]
6000
Aluminium lower profile (Cod. M9T0)
[ A ] [ B ]
6000
Aluminium cap profile (Cod. M9T1)
[ A ] [ B ]
6000
Aluminium strengthening profile (Cod. M9T2)
6000
Aluminium fixed sill profile (Cod. M9R6)
[ C ]
6500
Aluminium revolving sill profile (Cod. M9R7)
[ C ]
6500
10 mm aluminium panel stop (Cod. M9R4)
[ C ]
5700
EPDM gasket thickness 1 mm (Cod. M926)
[ C ]
---
1 mm EPDM gasket (Cod. M9S3)
[ A ] [ B ]
---
3 mm EPDM gasket (Cod. M9S5)
[ A ] [ B ]
---
EPDM thermal-break seal (Cod. M9T5)
[ A ] [ B ]
---
Screws (Cod. M9T3)
(Cod. M9T4)
[ A ] [ B ]
4.2 x 13,4.2 x 19
Rubber seal (Cod. M9Z9)
[ A ] [ B ]
---
ACCESSORY
[SCHEME]
DIM
(mm)
TECHNICAL DESIGN
Upper aluminium joining profile (Cod. M9S7)
[ B ]
600
Lower aluminium joining profile (Cod. M9S8)
[ B ]
6000
Aluminium upper head profile (Cod. M9S9)
[ A ]
6000
Aluminium lower profile (Cod. M9T0)
[ A ] [ B ]
6000
Aluminium cap profile (Cod. M9T1)
[ A ] [ B ]
6000
Aluminium strengthening profile (Cod. M9T2)
6000
Aluminium fixed sill profile (Cod. M9R6)
[ C ]
6500
Aluminium revolving sill profile (Cod. M9R7)
[ C ]
6500
10 mm aluminium panel stop (Cod. M9R4)
[ C ]
5700
EPDM gasket thickness 1 mm (Cod. M926)
[ C ]
---
1 mm EPDM gasket (Cod. M9S3)
[ A ] [ B ]
---
3 mm EPDM gasket (Cod. M9S5)
[ A ] [ B ]
---
EPDM thermal-break seal (Cod. M9T5)
[ A ] [ B ]
---
Screws (Cod. M9T3)
(Cod. M9T4)
[ A ] [ B ]
4.2 x 13,4.2 x 19
Rubber seal (Cod. M9Z9)
[ A ] [ B ]
---
